Raw data from ShaftLab manual

Bend at impact

Driver5-iron
Lead Droop Angle Lead Droop Angle
Armour 0.91 1.21 53 0.61 0.74 51
Cochran 0.91 1.15 52 0.7 0.71 45
Cook 1.12 1.15 46 0.78 0.9 49
Estes 1.17 0.79 34 0.69 0.47 34
Jacobsen 1.09 0.49 24 0.78 0.47 31
Love III 0.55 0.49 42 0.44 0.99 66
Norman 0.95 0.53 29 0.67 0.68 45
Palmer 0.41 0.42 46 0.43 0.55 52
Pavin 0.45 0.51 49 0.22 0.47 65



Maximum bend


DriverSwing
Style
5-iron
Lag
at
Max
Bend
Toe-up
at
Max
Bend
Angle
(deg)
Max
Bend
Time:
Max
Bend
to
Impact
Lag
at
Max
Bend
Toe-up
at
Max
Bend
Angle
(deg)
Max
Bend
Time:
Max
Bend
to
Impact
Armour 5.2 9.0 27 10.10.10Ramp2.6 3.8 374.70.10
Cochran 5.2 4.4 50 6.80.14Single2.3 2.4 443.30.20
Cook 1.3 7.9 18 8.30.12Ramp1.6 3.6 233.90.10
Estes 3.4 4.0 41 5.30.10Combo
*
1.5 1.8 392.30.08
Jacobsen 3.3 4.2 38 5.30.10Combo
*
1.6 1.7 432.30.10
Love III 3.5 4.3 40 5.60.09Double0.7 2.9 253.20.36
Norman 3.7 2.3 59 4.30.11Double2.0 0.9 672.20.11
Palmer 4.8 2.5 63 5.40.09Ramp2.7 1.5 653.00.08
Pavin 2.5 4.2 25 4.60.23Double
**
0.9 2.2 212.40.26
Pavin
Down-
swing
0.33.663.60.11Double
**
0.41.6141.70.10

* This shape is a cross between a ramp and a double peak.. It starts with a plateau that droops a little, and has a considerable peak about 0.1sec before impact.

** (Specific swings shaded) Corey Pavin (and also Davis Love with an iron) is not only a double; it has the maximum deflection at the first peak, not the second. That is why the "Time: Max Defl to Impact" is so much longer for those swings.


Scans of the actual ShaftLab traces

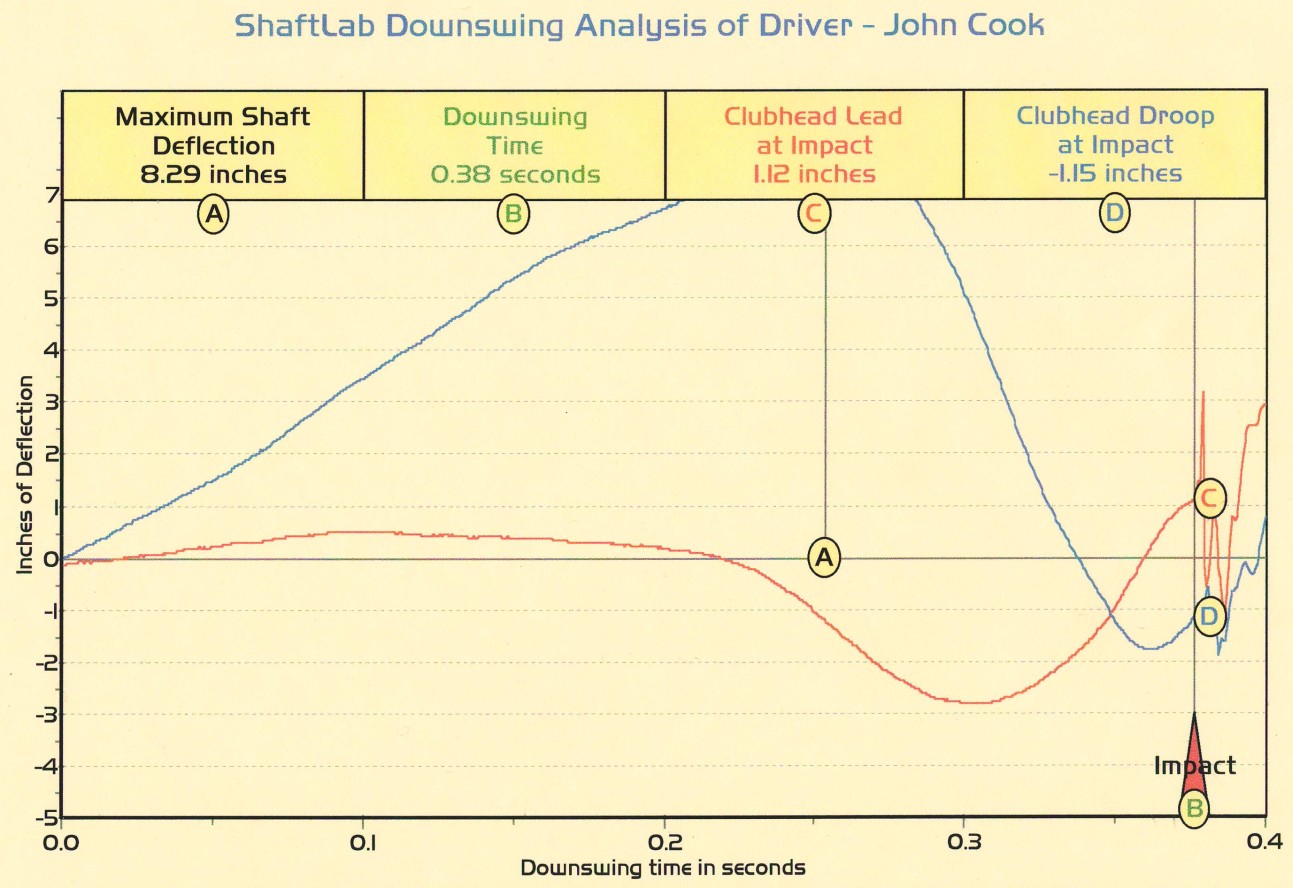

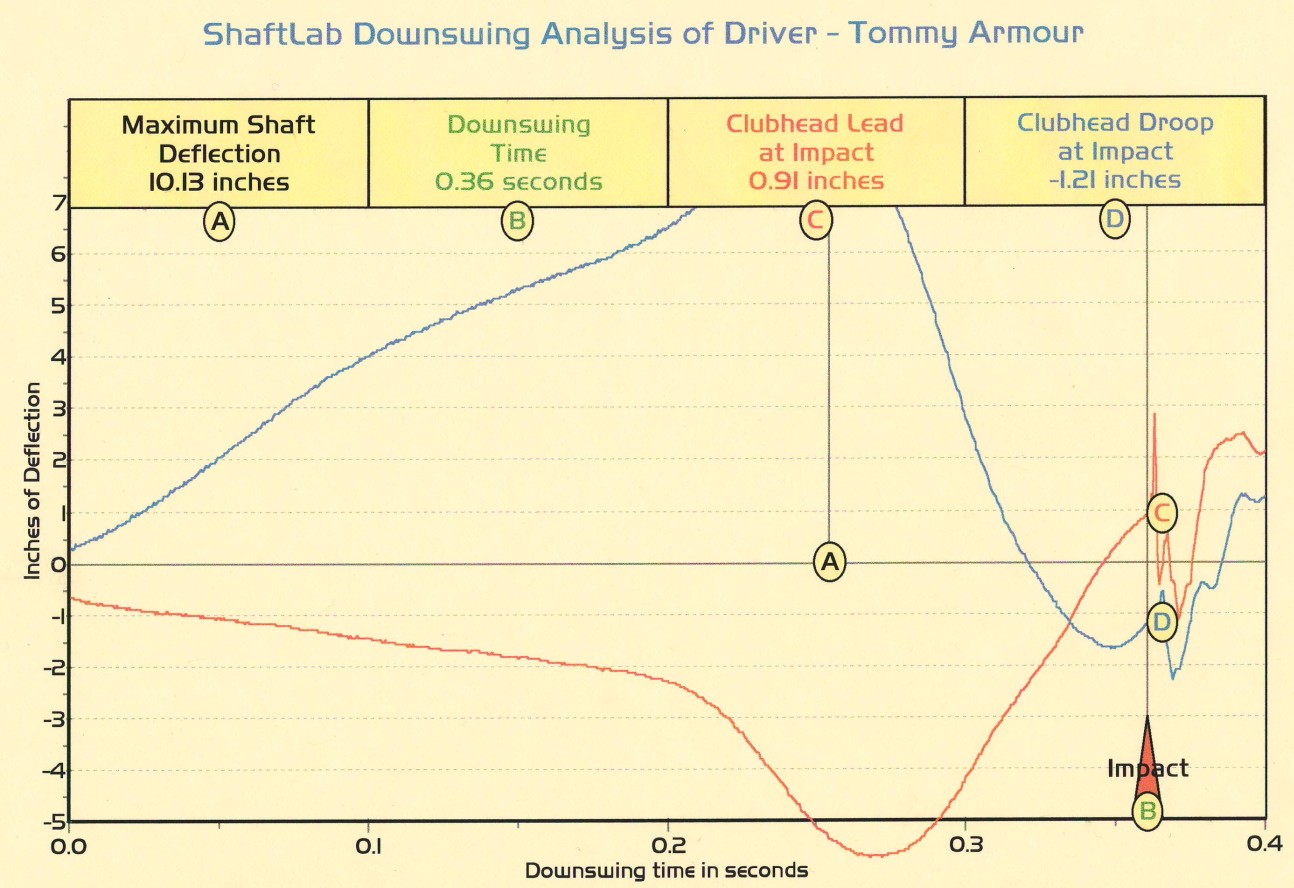

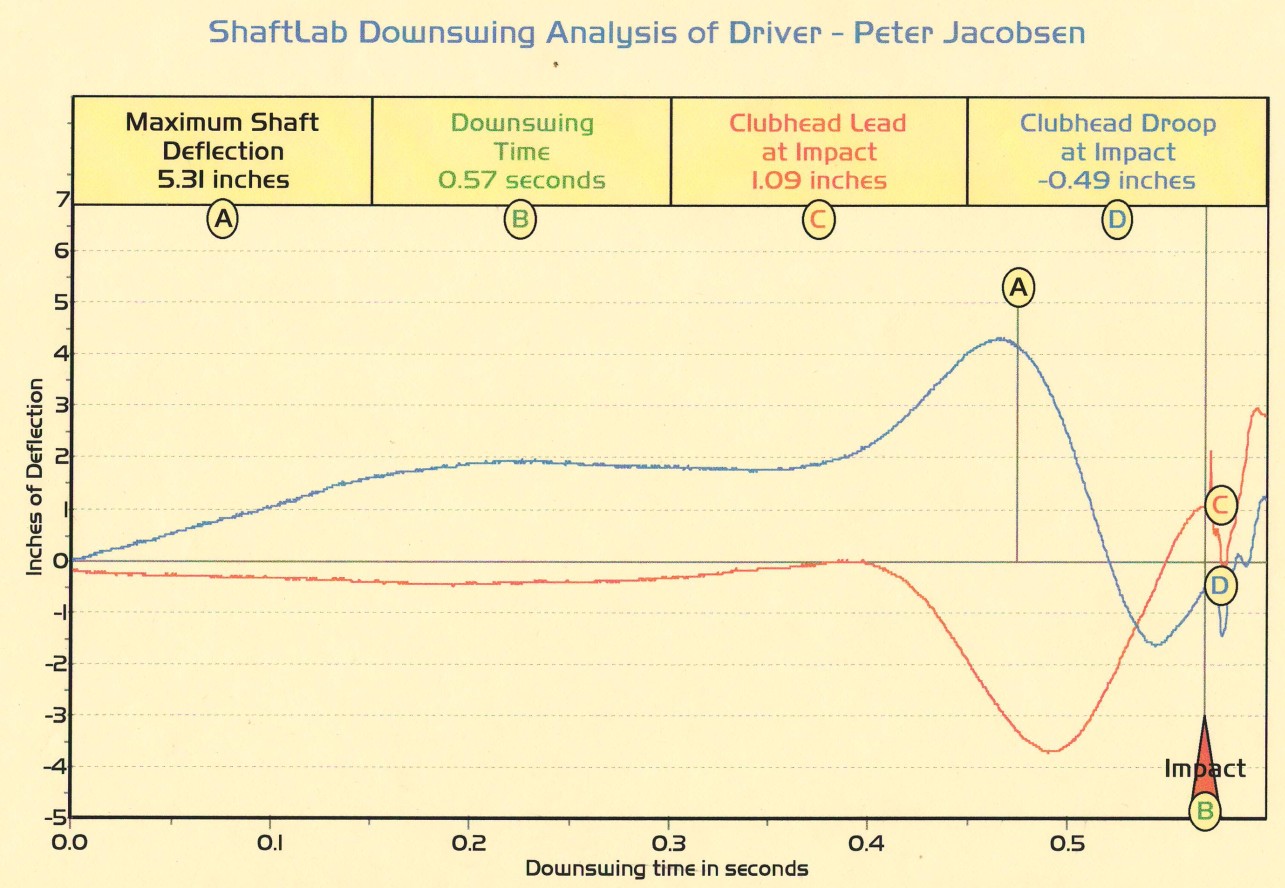

Armourdriver5-iron

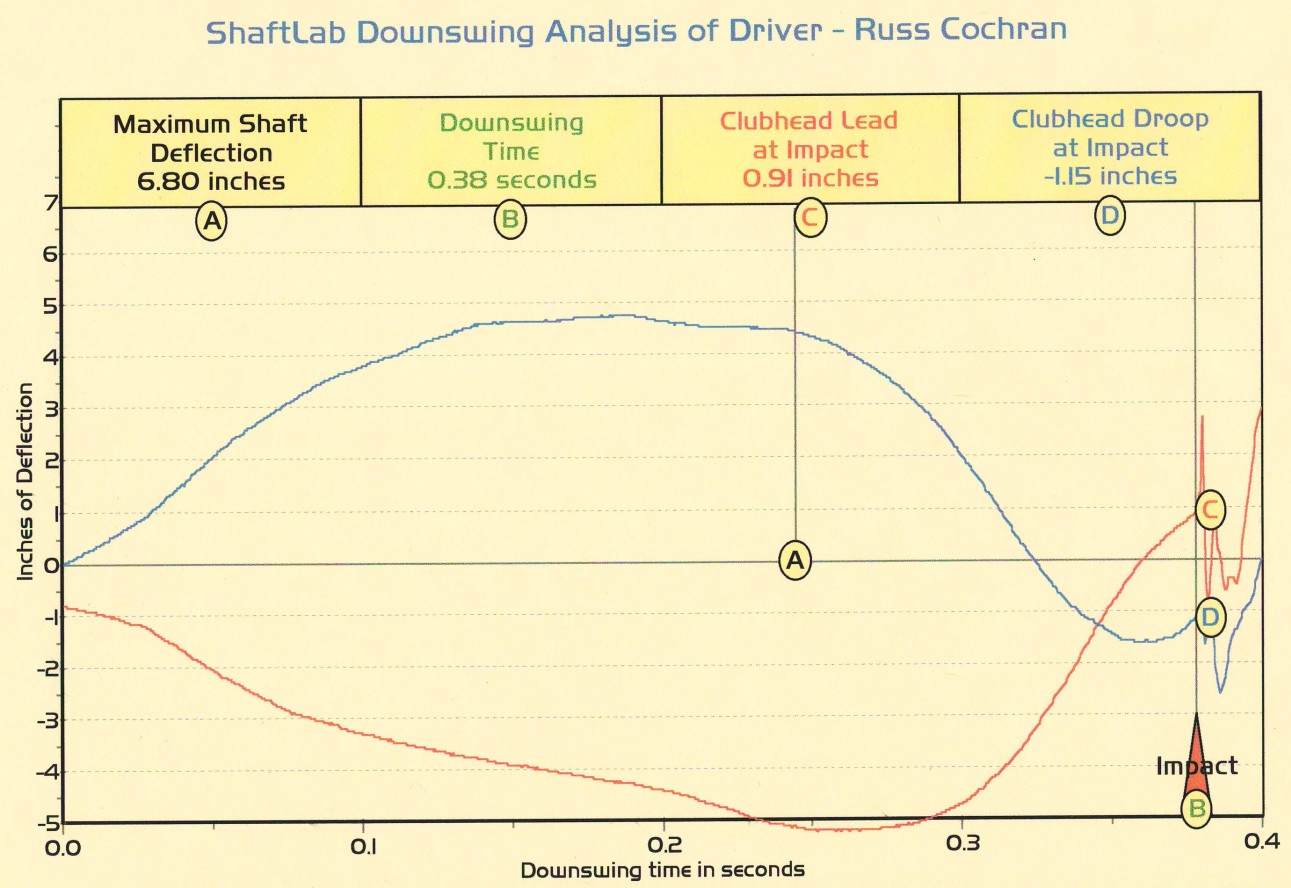

Cochrandriver5-iron

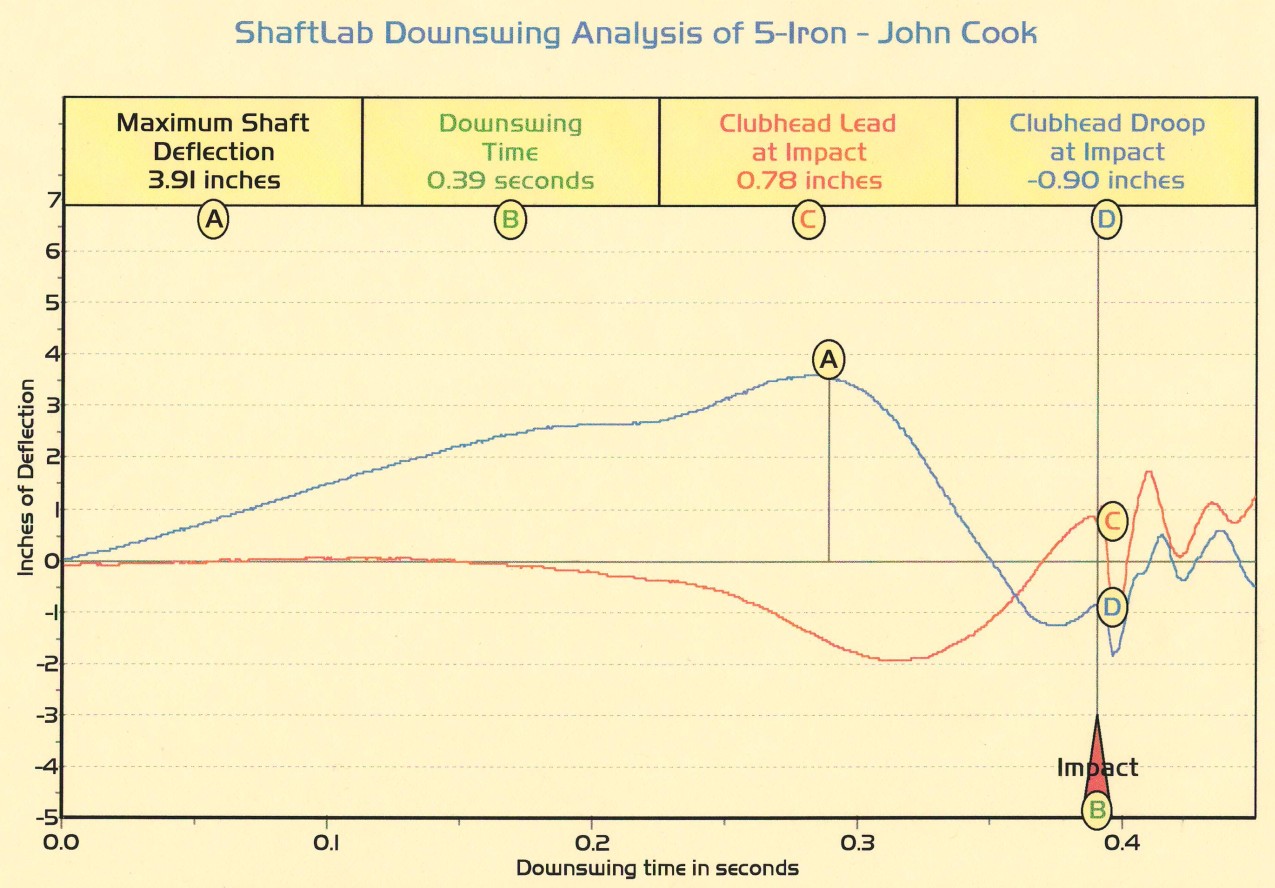

Cookdriver5-iron

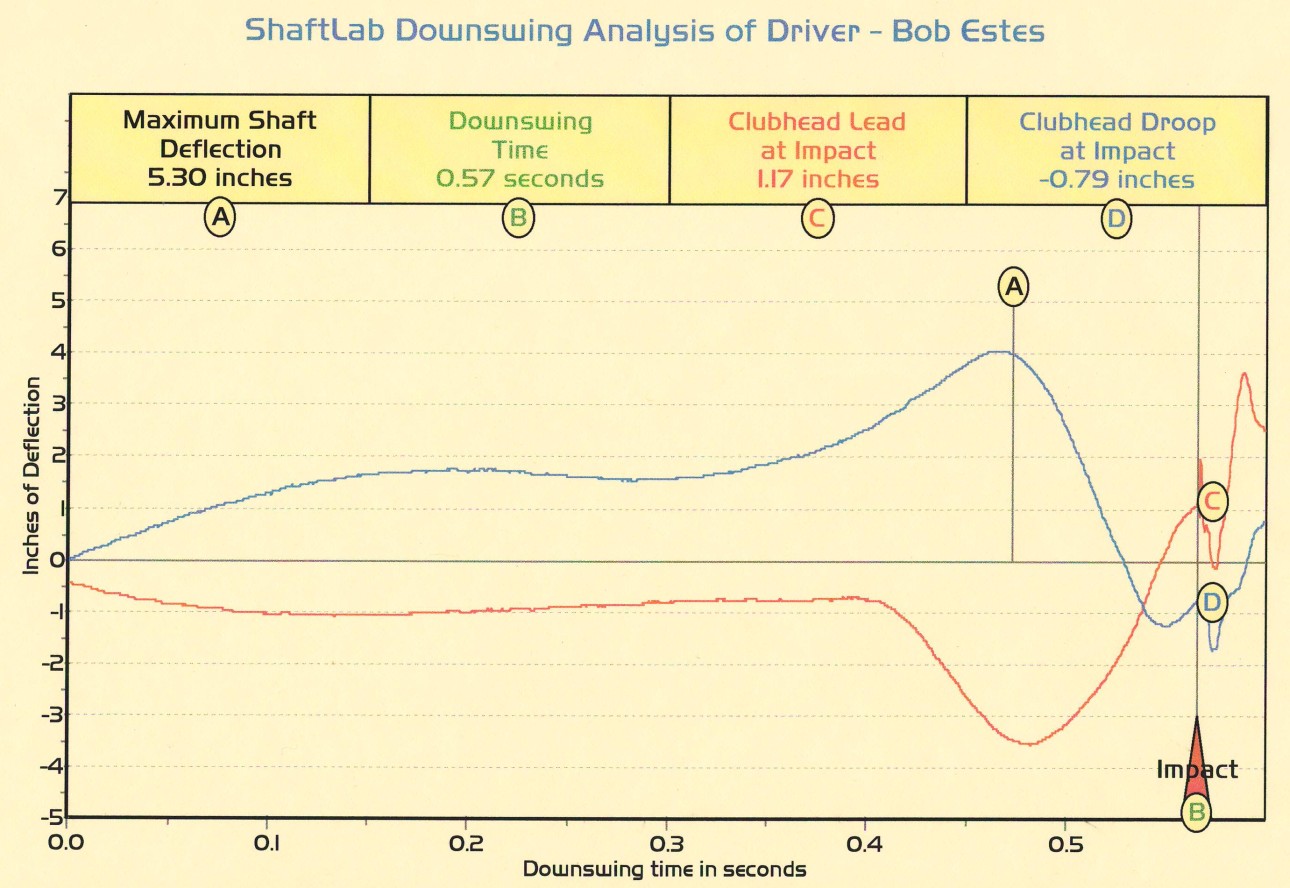

Estesdriver5-iron
Jacobsendriver5-iron

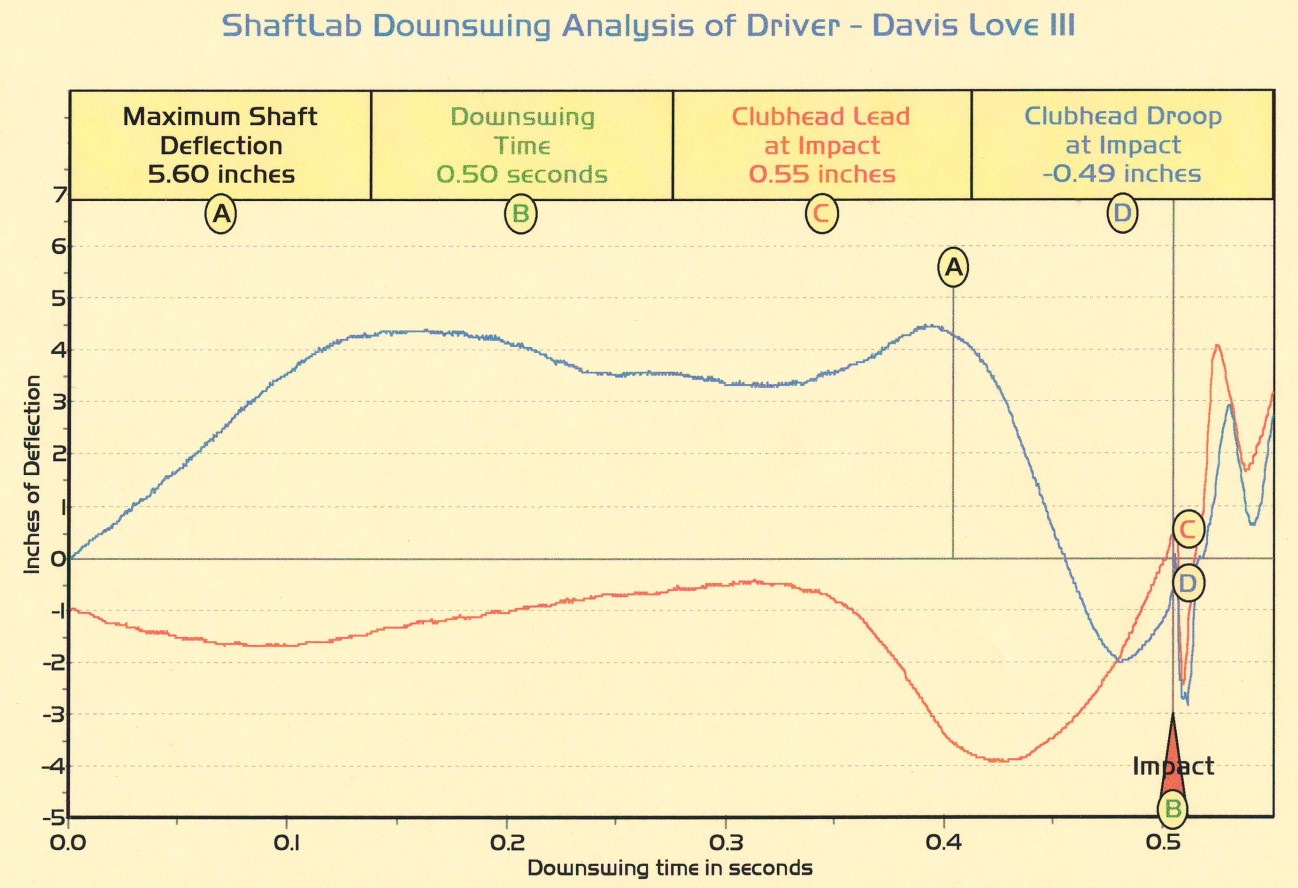

Love IIIdriver5-iron
Normandriver5-iron

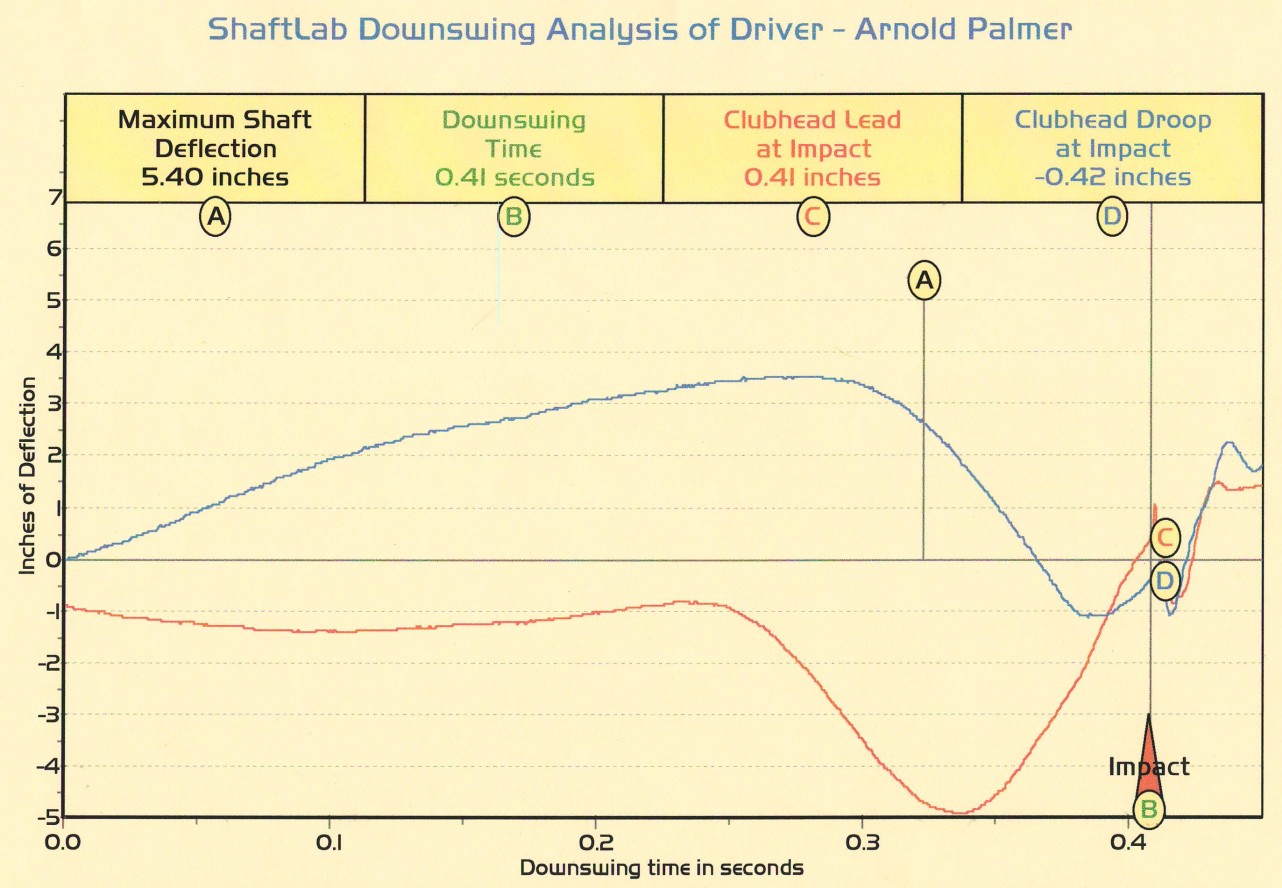

Palmerdriver5-iron

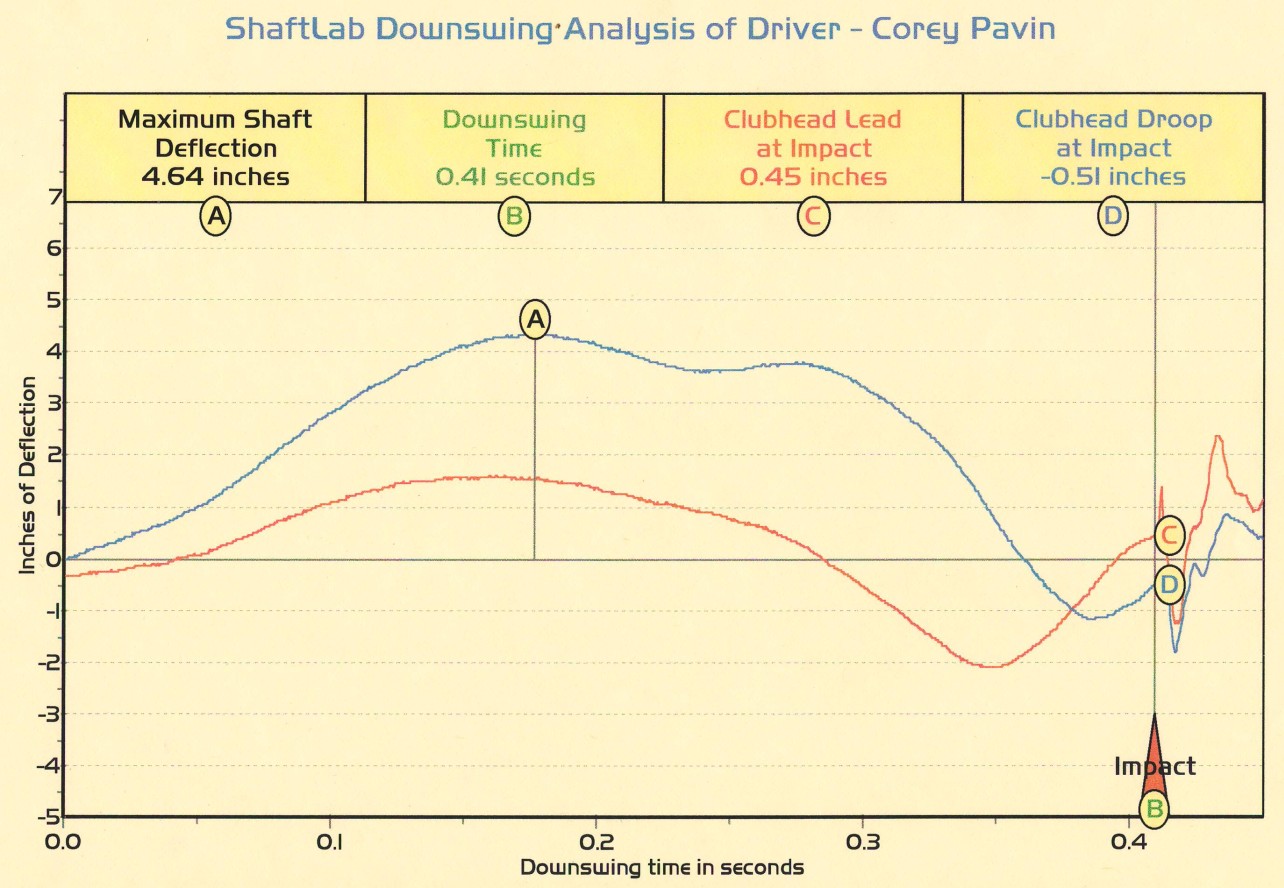

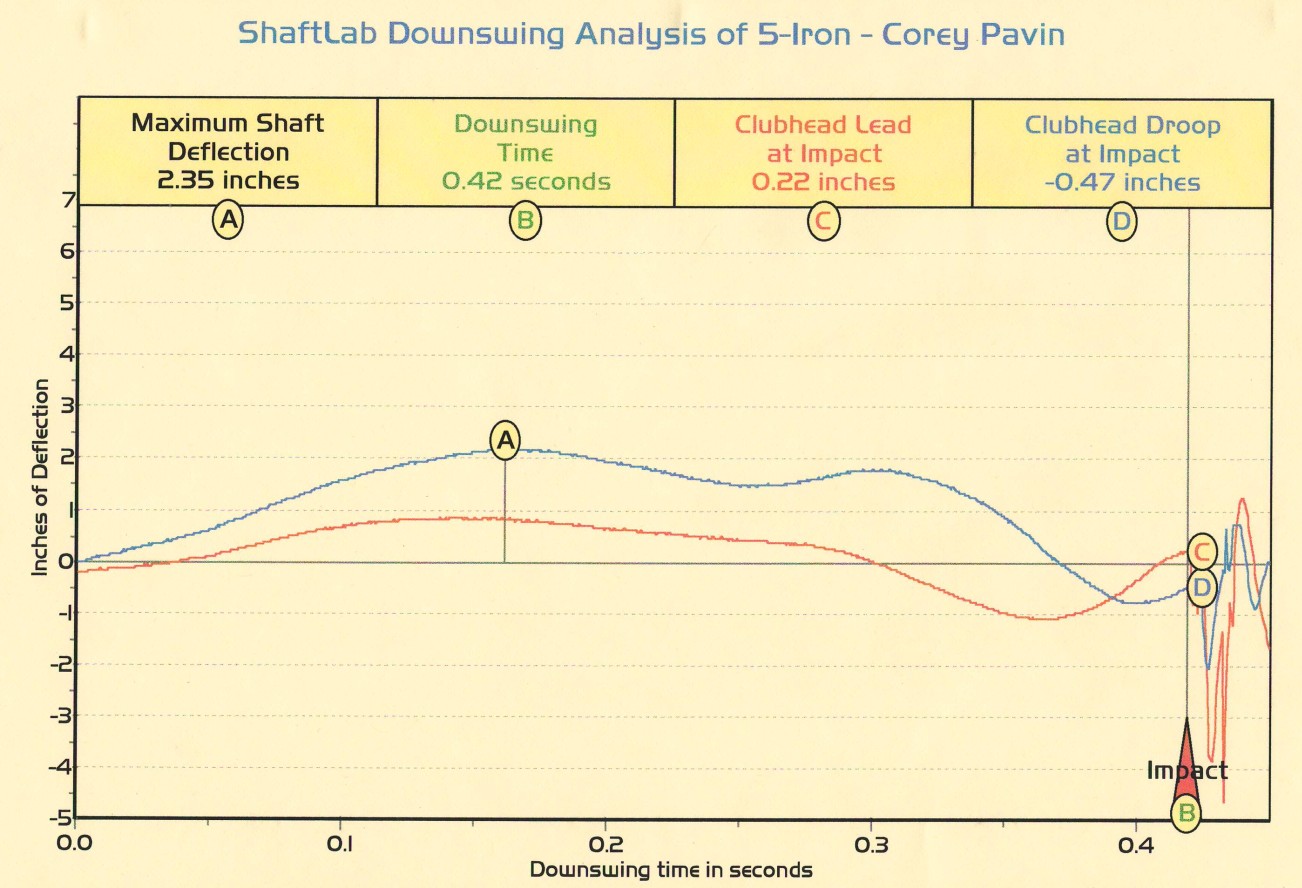

Pavindriver5-iron
